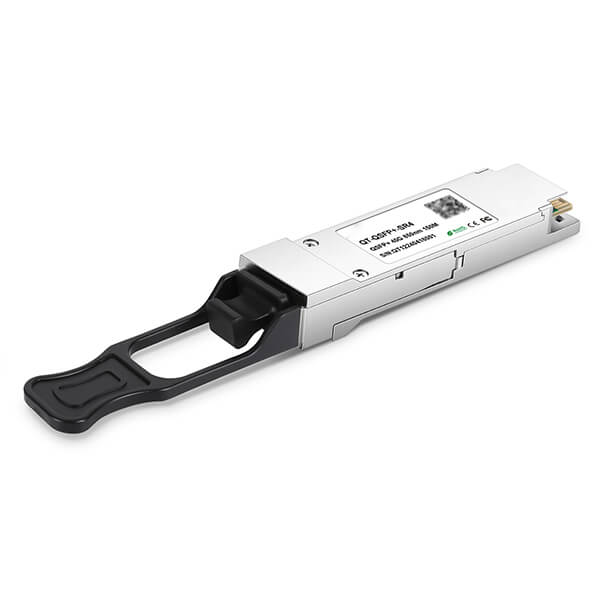

Specifications:
- Brand Name:- Juniper
- Part Number:- SRX-QSFP-40G-SR4
- Product Category:- Transceivers
- Transceiver Type:- QSFP+
- Max Data Rate:- 40 Gigabit
Parameters:
- Wavelength:- 850nm
- Max Cable Distance:- 150m@OM4/100m@OM3
- Commercial Temperature Range:- 0 to 70°C (32 to 158°F)
- Core Size:- 50um
- Receiver Overload:- 2.4dBm
- Power budget:- 3.5dB
Brief Details:
- Connector:- MTP/MPO-12 Male
- Media:- MMF
- Transmitter Type:- VCSEL
- Receiver Type:- PIN
- TX Power:- -7.1~1.9dBm
- Receiver Sensitivity:- <-10.3dBm
- Power Consumption:- <1.5W
- Extinction Ratio:- >3dB
- Modulation:- NRZ
- Host FEC:- Supported
- Bit Error Ratio (BER):- 1E-12
- Protocols:- IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
Dimensions:
- Product Dimensions(LxWxH):- 7.11 x1.35×0.85 Cm/ 71.1 x 13.5 x 8.55 mm
- Weight: 0.1 kg/ 0.22 Lbs
- Product Shipping Dimensions(LxWxH): 4″x4″x2″
- If you need a Juniper JNP-QSFP-100G-SR4, We Have
We kept stock in New, Used, and Refurbished condition.
