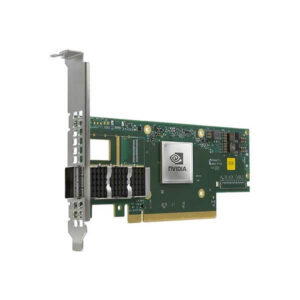

Mellanox MCX653106A-ECAT ConnectX-6 HDR 100Gb Adapter QSFP56 PCIe4 CX653106A

Specifications:

• Brand Name:- Mellanox/NVIDIA
• Part Number:- MCX653106A-ECAT
• Product Category:- Adapter Cards
• Port:- Dual
• RoHS Compliant:- Yes
• Max Speed:- HDR and 100Gb/s
• Host Interface:- PCIe 4.0×16
• Interface Type:- QSFP56
• Link Rate:- 16 GT/s
• SR-IOV:- Yes
• RDMA:- Yes
• Max. Power Consumption:- 21W
• Operating Temperature:- 0 °C to 55 °C
• Storage Temperature:- -40 °C to 70 °C
• Product Dimensions(LxW):- 6.6x 2.71 Inches /167.65 x 68.90 mm
• Weight:- 0.44 Kg / 0.97 Lbs
• Shipping Dimensions(LxWxH):- 8 x 4 x 2 Inches/20.3 x 10.2 x 5.08 Cm
• If you need a Mellanox MCX456A-ECAT, We Have

We kept stock in New, Used, and Refurbished condition.

MCX653106A-ECAT

The Mellanox MCX653106A-ECAT ConnectX-6 HDR 100Gb Adapter is a specialized networking interface connectivity card that is intended for data centres with high amounts of traffic. This adapter card offers up to HDR and 100Gbps speeds for setups that require super-fast data transfer. A PCIe 4.0 x16 host interface is included, thus providing a good bandwidth to the server and it supports QSFP56 connectors for flexibility.

For fast data transfer, the Mellanox MCX653106A-ECAT ConnectX-6 VPI adapter card provides HDR and 200Gbps Ethernet connection. It connects to Mellanox switches like the Mellanox Quantum, Spectrum, SN3700 series, SN3000 series, SN2700, and SN2100 for low latency in cloud computing and virtualization computing services. The MCX653106A-ECAT is also explicitly designed to interface with a number of switches, including those from Mellanox and NVIDIA QFX series switches, allowing for fast connections, which improves overall network throughput. Featuring a link rate of 16 GT/s (Giga transfers per second), this adapter helps to manage a large amount of information. “ECAT” stands for “Enhanced Converged Adapter Technology” signaling its support of the numerous protocols and applications in the network.

FAQs

How fast does the MCX653106A-ECAT go?

The maximum transmission speed is HDR and up to 100Gbps.

What type of interface does this adapter card employ?

It comes with the QSFP56 interface type.

Is the MCX653106A-ECAT RoHS compliant?

Yes, this adapter card is compliant with the Restriction of Hazardous Substances directive.
