Specifications:
- Brand Name:- Mellanox/NVIDIA
- Part Number:- MCX623106AS-CDAT
- Product Category:- Adapter Cards
- Capabilities:- Crypto Disabled Secure Boot Enabled
- Data Rate:- Ethernet – 1/10/25/40/50/100 Gb/s
- Connector:- Dual Qsfp56 Ethernet
- Typical Power:- Passive Cables – 18.7w (PCIe Gen 3.0) 19.52w (PCIe Gen 4.0)
- Maximum Power:- Passive Cables – 25.28w (PCIe Gen 3.0) 26.64w (PCIe Gen 4.0)
- Max Power Available Through Qsfp56 Port:- 5w (each Port)
- Voltage:- 3.3aux
Max Current:- 100ma - Product Dimensions(LxW):- 5.59 x 2.71 inches/142.0 x 68.9mm
- Weight:- 0.52 Kg/ 1.15 Lbs
- Shipping Dimensions(LxWxH):- 8 x 4 x 2 Inches/20.3 x 10.2 x 5.08 Cm
- If you need a Mellanox MCX414A-GCAT, We Have
We kept stock in New, Used, and Refurbished condition.
MCX623106AS-CDAT

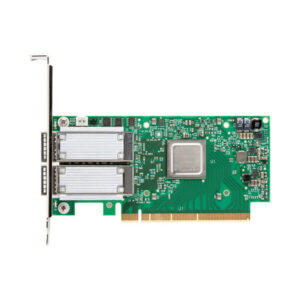

The Mellanox/NVIDIA MCX623106AS-CDAT ConnectX-6 100GbE QSFP56 PCIe Dual Port Ethernet Card is intended for data center applications. This adapter card is typically used to connect high-speed switches like Mellanox’s SN3000 series, SN2700, SN2100, SN3700, SN3410, SN2010, and the Spectrum series, enabling low-latency connections between servers and data centers. This card comes with a data rate having the capability to reach as high as 100Gbps with QSFP56 connectors and is well suited for the management of intensive tasks.
This dual-port adapter works with PCIe Gen 3.0 and Gen 4.0, delivering the maximum power efficiency of 26.64W and passive cable support. The card can have a 5W max power output per QSFP56 port which supports high-speed sending while consuming little energy. The letters CDAT present in the name of the model stands for Crypto Disabled, All Traffic – this one does not support encryption but provides booting safety.
FAQs
Is this card supported on Mellanox switches?
Yes, it works with Mellanox and other switches such as Juniper QFX and EX series.
How much power does it consume?
The maximum power consumption is 26.64W with PCIe Gen 4.0.
