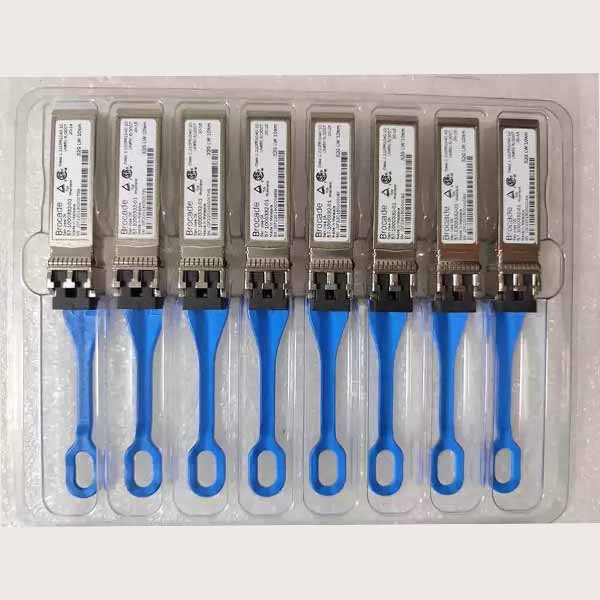

Brocade XBR-000238 32G 10km LongWave LWL SFP+ Transceiver 57-1000332-01

Specifications:

• Brand Name:- Brocade
• Part Number:- 57-1000332-01
• Product Category:- Transceivers
• Transceiver Type:- SFP 28
• Media Type:- Single-Mode Fiber (SMF)

Brief Details:

• Connectors:- Double LC
• Receiver Sensitivity:- -11.4 dBm
• Receiver Overload:- 2 dBm
• Transmitter Type:- DFB Laser
• Receiver Type:- PIN photodiode
• Tx Wavelength Bandwidth:- 30 nm (1295 – 1325 nm)
• Rx Wavelength Bandwidth:- 100 nm (1260-1360 nm)
• Min Transmitting Power:- -5 dBm
• Max Transmitting Power:- 2 dBm
• Power:- +3.3V single power supply
• Chipset:- II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo

Dimensions:

• Product Dimensions(LxWxH):- 7.11 x1.35×0.85 Cm/ 71.1 x 13.5 x 8.55 mm
• Weight: 0.11 kg/ 0.24 Lbs
• Product Shipping Dimensions(LxWxH): 4″x4″x2″

Parameters:

• TX Wavelength:- 1310 nm
• RX Wavelength:- 1310 nm.
• Minimum Optical Budget:- 6.4 dB
• Maximum Distance:- 10km
• Temperature Range:- Standard 0°-70°C
• Supported Data Rate:- 8.5-28.05 Gbps
• Supported Applications:- 32G Fiber Channel (28.05Gbps), 16G Fiber Channel (14.025Gbps), 8G Fiber Channel (8.5 Gbps)
• DDM/DOM:- Supported

We kept stock in New, Used, and Refurbished condition.

The XBR-000238 is a Brocade model 57-1000332-01 32G long-wavelength SFP+ transceiver optimized for IT data center and storage area network applications. Designed to run on single-mode fiber (SMF), it enables 32G, 16G, and 8G Fiber Channel services in different networks. It has a double LC connector and DFB laser transmitter that offers effective signal transmission at high speed for application in further connections in large installations. This Brocade 57-1000332-01 XBR-000238 32G Long Wave SFP+ transceiver module is compatible with Brocade switches, for example, the G620, G630 & X6 director series, 6510, and 6520. It also supports communication with Cisco MDS 9000 series switches, including the Cisco MDS 9148T, MDS 9396T and MDS 9700 for high-performance storage area networks and data center applications. This compatibility provides assured, high rate links that are ideal for complex enterprise networks and storage networks.

It works in the central wavelength of 1310nm and has a receiver sensitivity of -11.4 dBm for stability in very long distances. Sustainability and efficiency are also expressed through the dimensions of this model – 71.1 by 13.5 by 8.55 mm, and RoHS conformity. Long Wave Length simply means LWL, which outlines the product’s proficiency in establishing a connection to remote stations without signal depletion. This design is capable of providing stable performance from a +3.3V single supply and also minimizes power consumption.

FAQs

How long is the transmission distance of the Brocade 57-1000332-01?

This transceiver works up to a maximum distance of 10 km.

Which type of switches can be used with this transceiver?

It supports Brocade G620 and Cisco MDS 9000 series switches.

What is the temperature range of operation of the device?

It works well within the temperature range of O centigrade to 70 centigrade.
