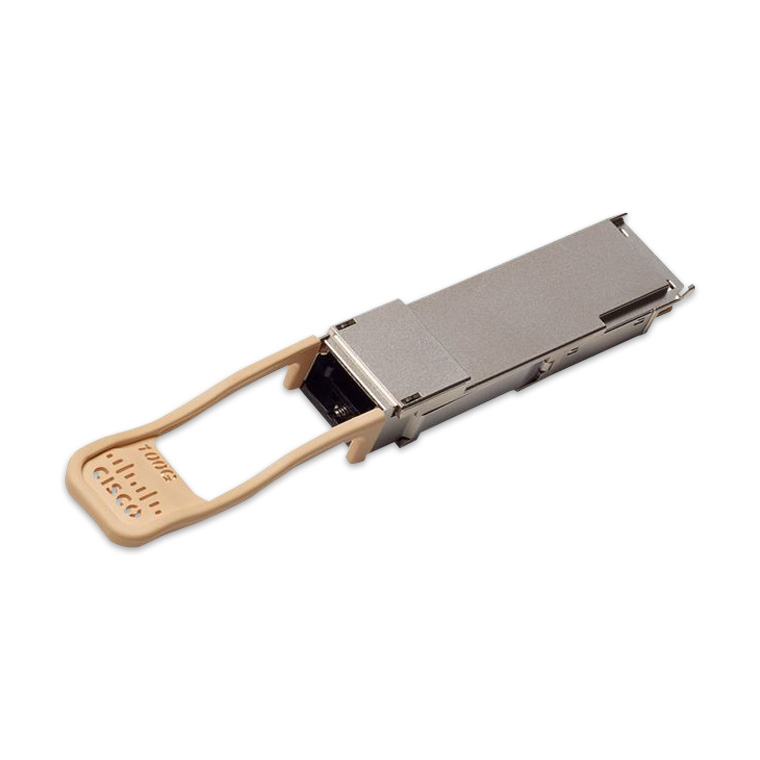

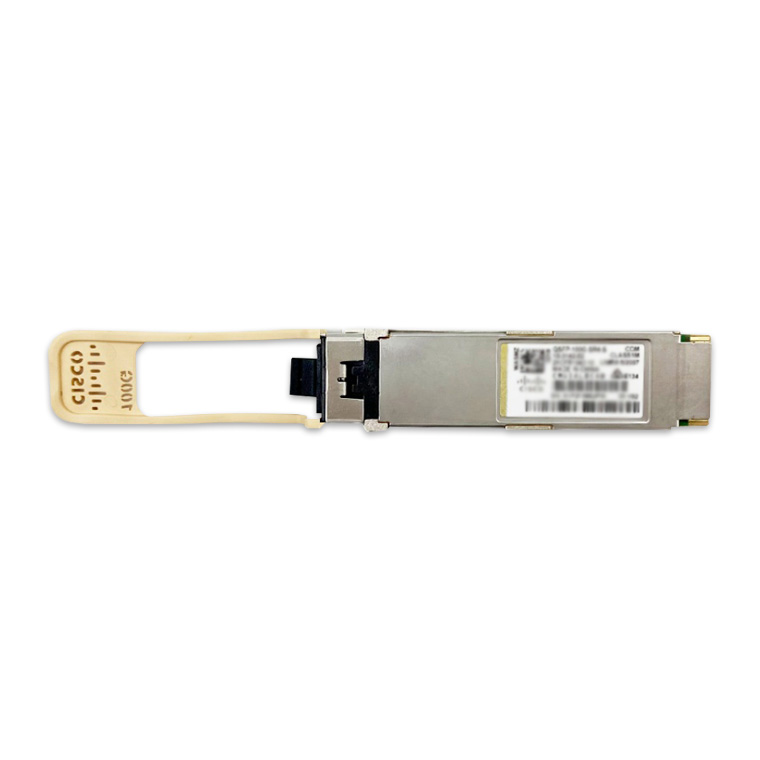

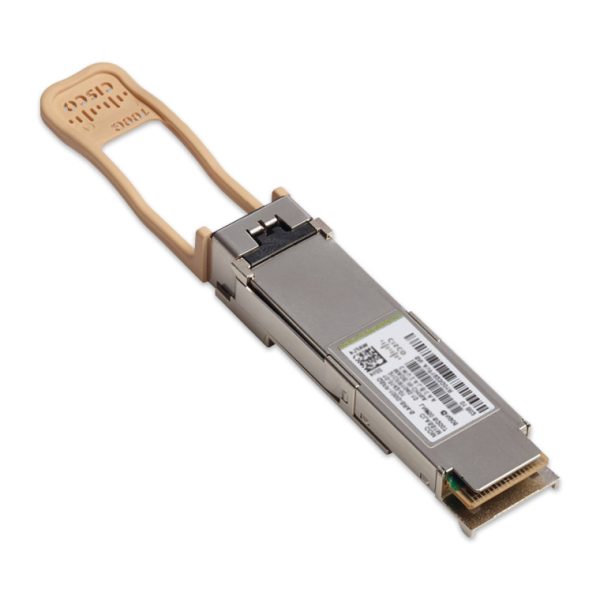

Cisco QSFP-100G-SR4-S DOM MTP/MPO-12 MMF 850nm 100m
Original price was: £630.00.£590.00Current price is: £590.00.
- Transceiver Category QSFP28
- Connector MTP/MPO-12
- Transmitter VCSEL 850nm
- Power Consumption ≤2.5W
- Wavelength 850nm
To use this element install or activate XStore Core plugin
- Cisco Transceiver Part Number:- QSFP-100G-SR4-S
- Transceiver Category:- QSFP28
- Protocols:- QSFP28 MSA, SFF-8665, SFF-8636, RoHS,IEEE 802.3bm
- Clock and Data Recovery:- TX & RX
- DDM/DOM Digital Optical Monitoring / Digital Diagnostic Monitoring:- Supported
- Power Consumption:- ≤2.5W
- Powerbudget:- 1.9dB
- TX Power:- -8.4~2.4dBm
- Transmitter:- VCSEL 850nm
- Connector:- MTP/MPO-12
- Wavelength:- 850nm
- Temperature:- 0 to 70°C
- Extinction Rtio:- ＞3dB
- Receiver Overload:- 2.4dBm
- Media:- MMF
- Max Cable:- 70m OM3/100m OM4
- Transceiver Data:- 103.125Gbps
