Specifications:
- Brand Name:- Mellanox/NVIDIA
- Part Number:- MCX562A-ACAI
- Product Category:- Adapter Cards
- Interface (bus) Type:- Open Compute Project Mezzanine (OCP) 3.0
- PCI Specification Revision:- Pcie 3.0
- Ports:- 10gb Ethernet / 25gb Ethernet Sfp28 X 2
- Data Link Protocol:- 10 Gige, 25 Gigabit Lan
- Data Transfer Rate:- 25 Gbps
- Compliant Standards:- Ocp 3.0
- Weight:- 0.26 kg /0.57 Lbs
- Product Dimensions(LxWxH):- 11.7×11.3×8.07 inches /297.2x287x205 mm
- If you need a Mellanox MCX623105AS-VDAT, We Have
We kept stock in New, Used, and Refurbished condition.

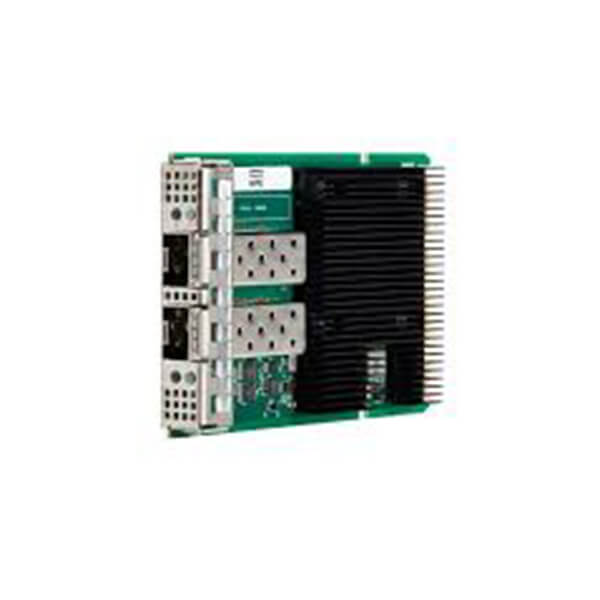

MCX562A-ACAI
The Mellanox MCX562A-ACAI is a low latency 10/25Gb Ethernet 2-port adapter, ideal for high-bandwidth, low-latency networking. These ports include SFP28 which is compatible with both 10G Ethernet and 25G Ethernet to cater for data center and enterprise networks. Being compatible with the Open Compute Project (OCP) 3.0 standards, this adapter offers a reliable performance especially when linking the hardware to high-capacity servers. It can provide a data transfer rate of up to 25 Gbps particularly useful for high-speed networking conditions.
‘ACAI’ in the model respectively stands for Advanced Cooling and Integration to imply that the design is suitable for cooling in complex conditions. This adapter has a weight of 0.26 kg, making it easy to work on high-speed connections with Mellanox switches, including the Mellanox Spectrum SN4000 and SN3000 series, and the Mellanox SX1012 and SX1024 series switches. The Mellanox MCX562A-ACAI is ideal for large-scale if the organization requires a high-performance business network.
FAQs
What is the purpose of the Mellanox MCX562A-ACAI?
It is employed for transitioning high-speed Ethernet networks in data centers and multi-tenant business premises.
Is MCX562A-ACAI capable of OCP 3.0 used?
Yes, it is OCP 3.0 compliant.
What kind of connectors does it employ?
It also supports SFP28 interfaces for 10/25Gb Ethernet connectivity.
