Mellanox/NVIDIA MCX653105A-HDAT-SP Technologies ConnectX-6 VPI – PCI Express
Original price was: £1,295.00.£1,180.00Current price is: £1,180.00.
- Product Type:- 200Gigabit Ethernet Card
- Host Interface:- PCI Express 4.0 x16
- Total Number of Ports:- 1
- Expansion Slot Type:- QSFP56
- Media Type Supported:- Optical Fiber
To use this element install or activate XStore Core plugin
Specifications:
- Brand Name:- Mellanox/NVIDIA
- Part Number:- MCX653105A-HDAT-SP
- Product Category:- Adapter Cards
- Product Line:- ConnectX-6 VPI
- Product Model:- MCX653105A-HDAT-SP
- Product Type:- 200Gigabit Ethernet Card
- Host Interface:- PCI Express 4.0 x16
- Total Number of Ports:- 1
- Expansion Slot Type:- QSFP56
- Media Type Supported:- Optical Fiber
- Network Technology:- 100/50/40/25/10 GBase-X
- Environmentally Friendly:- Yes
- Product Dimensions (LxW):- 6.6 x 2.71 Inches /167.65 x 68.90mm
- Weight:- 0.52 kg/ 1.15 Lbs
- Shipping Dimensions(LxWxH):- 8 x 4 x 2 Inches/20.3 x 10.2 x 5.08 Cm
- If you need a Mellanox MCX653105A-HDAT, We Have
We kept stock in New, Used, and Refurbished condition.
MCX653105A-HDAT-SP

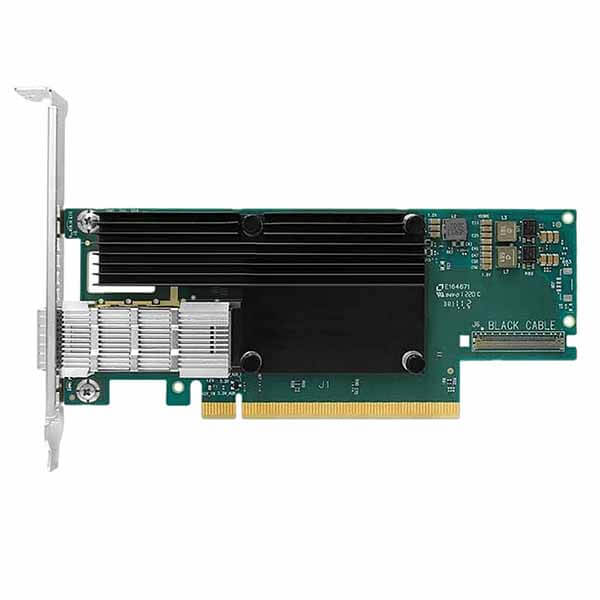

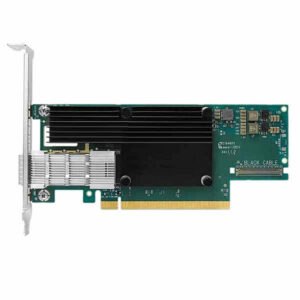

The Mellanox MCX653105A-HDAT-SP ConnectX-6 VPI Adapter Card provides superior connectivity with non-blocking, which is capable of attaining up to 200Gbps, making it an ideal connectivity partner for data centers and challenging networks. This Ethernet card is equipped with QSFP56 ports and connects through the help of PCI Express 4.0 x16 for a stable and rapid link. The card is ideal for Mellanox and NVIDIA switches, to help improve data rates and lower the latency.
“HDAT” stand for “High Data Accelerator Technology”, while ‘SP’ in the product name is an abbreviation of ‘Special Performance’ to underscore the product’s capability to manage data volumes. It supports several network technologies such as 100/50/40/25/10 GBase-X depending on the case. Optical fibres support of the card also provides fast and reliable work with low power consumption. The MCX653105A-HDAT-SP card is used to connect with Mellanox switches such as the Spectrum series, Switch-IB 2, Switch-IB 1, and SN3000 series.
FAQs
What is the maximum speed of the product model MCX653105A-HDAT-SP?
The maximum speed is 200Gbps.
What forms of switches are compatible with this card?
They can be coupled with Mellanox and NVIDIA switches.
What does the four letters HDAT-SP mean?
It denotes HDAT – SP as High Data Accelerator Technology – Special Performance.
