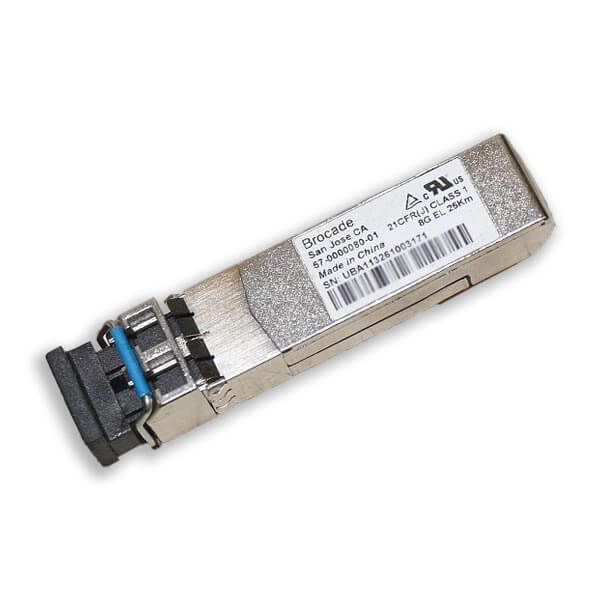

Brocade XBR-000174 57-0000080-01 8GB Mini GBIC ELWL 25KM SFP+ 1310nm Transceiver Module

Specifications:

• Brand Name:- Brocade
• Part Number:- 57-0000080-01
• Product Category:- Transceivers
• Transceiver Type:- SFP+
• Device Type:- 8G FC SFP+
• Data Rate:- 8.5Gbps
• Wavelength:- 1310nm
• Distance:- 25km
• Connector:- Duplex LC
• Cable Type:- SMF
• DDMI:- Yes
• Operating Temperature Range:- 0 to 70°C (32 to 158°F)

Dimensions:

• Product Dimensions(LxWxH):-5.75 x 1.20 x 1.4 cm/57.5 x 12.05 x14 mm
• Weight:- 0.2 Kg/ 0.44 Lbs
• Product Shipping Dimensions(LxWxH): 4″x4″x2″

We kept stock in New, Used, and Refurbished condition.

This is the Brocade XBR-000174 57-0000080-01 8GB Mini GBIC ELWL SFP+ transceiver module designed to make high-performance data transmission in distances accessible to data centres and networking applications. With a data rate of 8.5Gbps, it can attain a range of 25km using SMF, 1310nm and is suitable for applications in fibre-optic extensions. The Brocade XBR-000174 57-0000080-01 provides compatibility to all the Brocade switch models, including Brocade 6510, 6520, 6505, 6545, and 7840 switch models and the Brocade G620 and G630 series of switches, respectively. These switches are useful for those that need high-speed and extended-distance data transmission, making this transceiver appropriate for use in enterprise data centres, cloud arrangements, and virtualization systems.

The 57-0000080-01 transceiver utilizes a Duplex LC connector and supports the Digital Diagnostics Monitoring Interface (DDMI) for performance monitoring over the network, increasing availability. Fabricated according to RoHS, it complies with environmental regulations and functions optimally at a temperature of 0°C to 70°C for different data environments.

FAQs

What switches does the Brocade XBR-000174 57-0000080-01 fit in?

This one supports and works well with Brocade 6510 and 6520 Fiber Channel switches.

What is the maximum data rate of this transceiver in the MATLAB codes?

It further supports a data rate of 8.5 Gbps.

What is the distance that is supported in data transmission?

They can work up to a range of 25 kilometers with regard to data transmission.
