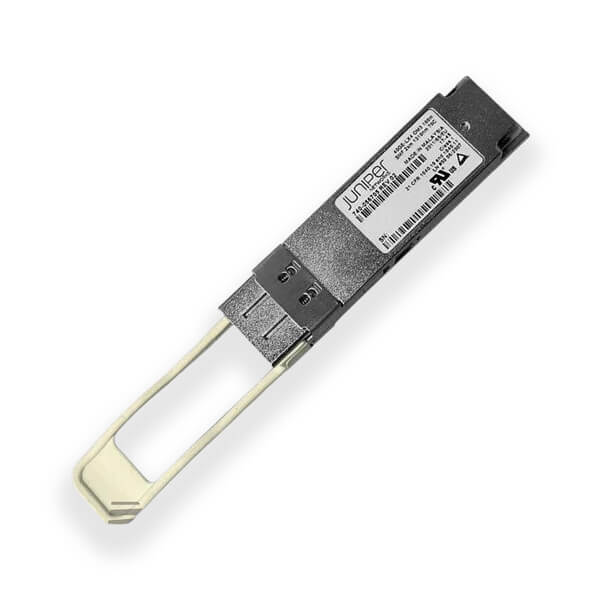

Juniper JNP-QSFP-40G-LX4 740-056705 40GE-LX4 OM3 100m 1310nm Transceiver Module

Specifications:

• Brand Name:- Juniper
• Part Number:- JNP-QSFP-40G-LX4
• Product Category:- Transceivers
• Transceiver Type:- QSFP
• Media Type:- Multi-Mode Fiber (MMF), Single-Mode Fiber (SMF)

Parameters:

• TX Wavelength:- 1310 nm.
• RX Wavelength:- 1310 nm.
• Minimum Optical Budget:- 4.5 dB (SMF) / 2.5 dB (MMF)
• Maximum Distance:- 150m, 2km
• Supported Data Rate:- 39.81 – 44.8 Gbps
• Temperature Range:- Standard 0°-70°C

Brief Details:

• Supported Applications:- 40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps)
• DDM/DOM:- Supported
• Connectors:- Double LC
• Tx Wavelength Bandwidth:- 4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331))
• Rx Wavelength Bandwidth:­- 4 WDM Seperated 1310nm Lanes (13nm (1271, 1291, 1311, 1331))
• Minimum Transmitting Power:- Each Lane SMF: -7 dBm / MMF: -7 dBm
• Maximum Transmitting Power:- Each Lane SMF: 2.3 dBm / MMF: 2.3 dBm
• Receiver Sensitivity:- Each Lane SMF: -11.5 dBm / MMF: -9.5 dBm
• Receiver Overload:- Each Lane SMF: 2.3 dBm / MMF: 2.3 dBm
• Transmitter Type:- DFB Laser
• Receiver Type:- PIN photodiode
• Chipset:- MAXIM, MINDSPEED, SEMTECH, UX
• Power:- +3.3V single power supply

Dimensions:

• Production Dimensions (LxWxH):-  7.24 x 1.84 x 1.35 Cm/ 72.4 x 18.4 x 13.5 mm
• Weight: 0.1 kg/ 0.22 Lbs
• Product Shipping Dimensions(LxWxH): 4″x4″x2″
• If you need a Juniper SFPP-10G-SR-C, We Have

We kept stock in New, Used, and Refurbished condition.
