Specifications:
- Brand Name:- Juniper

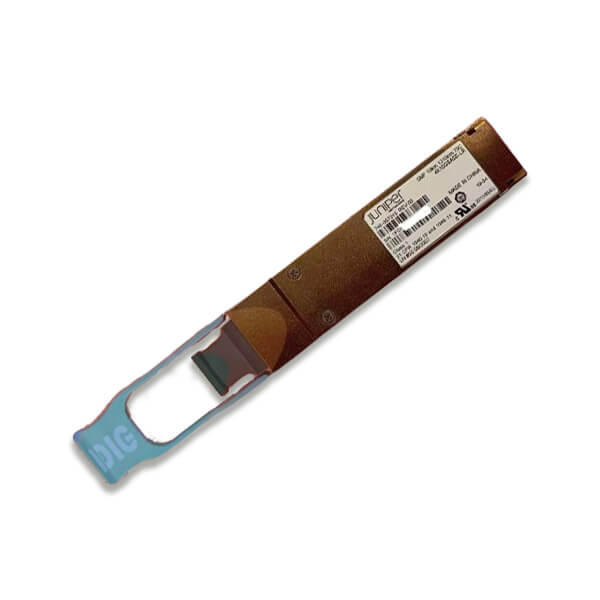

- Part Number:- JNP-QSFP-4X10GE-LR
- Product Category:- Transceivers
- Transceiver Type:- QSFP+
- Max Data Rate:- 44.4Gbps (4x 11.1Gbps)
Parameters:
- Wavelength:- 1310nm
- Max Cable Distance:- 10km
- Connector:- MTP/MPO-12 Male
- Commercial Temperature Range:- 0 to 70°C
- Power budget:- 8.4dB
- Receiver Overload:- 0.5dBm
Brief Details:
- Media:- SMF
- Transmitter Type:- 4x DFB
- Receiver Type:- PIN
- TX Power:- -6~-1dBm
- Receiver Sensitivity:- <-14.4dBm
- Power Consumption:- ≤2.5W
- Core Size:- 9um
- Extinction Ratio:- >4.5dB
- Modulation:- NRZ
- Host FEC:- Supported
- Bit Error Ratio (BER):- 1E-12
- Protocols:- 40G Ethernet, MSA Compliant
Dimensions:
- Production Dimensions (LxWxH):- 7.24 x 1.84 x 1.35 Cm/ 72.4 x 18.4 x 13.5 mm
- Weight: 0.1 kg/ 0.22 Lbs
- Product Shipping Dimensions(LxWxH): 4″x4″x2″
- If you need a Juniper JNP-SFPP-10GE-T, We Have
We kept stock in New, Used, and Refurbished condition.
