Specifications:
- Brand Name:- Mellanox/NVIDIA
- Part Number:- MCX515A-CCAT
- Product Category:- Adapter Cards
- Ports:- Single
- Technology:- Ethernet
- Supported Ethernet Speeds:- 100/50/40/25/10/1GbE
- Interface Type:- QSFP28
- Host Interface:- PCIe 3.0 x16
- Link Rate:- 8.0 GT/s
- OS Support:- Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2
- Cabling Type:- QSFP28 Transceiver, DAC and AOC
- RDMA:- Yes
- RoHS R6 Compliant:- Yes
- Product dimensions(LxW):- 2.71 in. x 5.6 in./ 68.90mm x 142.24 mm
- Weight:- 0.42 Kg/ 0.93 Lbs
- Shipping Dimensions(LxWxH):- 8 x 4 x 2 Inches/20.3 x 10.2 x 5.08 Cm
- If you need a Mellanox MCX416A-CCAT, We have
We kept stock in New, Used, and Refurbished condition.

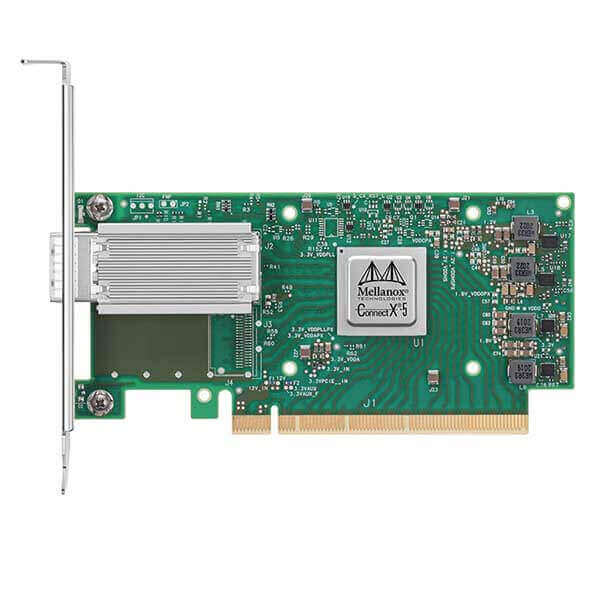

MCX515A-CCAT
Mellanox/NVIDIA MCX515A-CCAT ConnectX-5 EN is a Mellanox product, which is categorized as a Network Interface Card specifically meant for fast Ethernet. This card is capable of delivering speeds of One Hundred GbE, and it has a QSFP28 port. The single port makes this a quad small form-factor pluggable 28 interfaces, which is the best for data centers and high-speed networks. The device’s host interface is PCI (Peripheral Component Interconnect) Express 3.0 x16, making for fast data transfer as well as highly minimal transfer delay.
The MCX515A-CCAT can be used to connect to numerous switches including Mellanox SN3000 series, SN2700, SN2100, SN3700, SN3410, SN2010, and NVIDIA Spectrum series switches to improve network performance. It supports high bandwidth speeds such as one hundred, fifty, forty, twenty-five, ten, and one Giga Ethernet speeds. It is suitable for various networks. The card also includes the RDMA (Remote Direct Memory Access), which helps to manage data in scenarios requiring high performance. “CCAT” stands for “ConnectX-5 Adapter Technology”, which reveals its high level of networking.
FAQs
What is the fastest speed that the new model MCX515A-CCAT can go?
The maximum speed is 100GbE.
What kind of interface does it adopt?
It uses a QSFP28 interface.
Is MCX515A-CCAT RoHS compliant?
Yes, it is according to the environmental standard of RoHS compliance.
