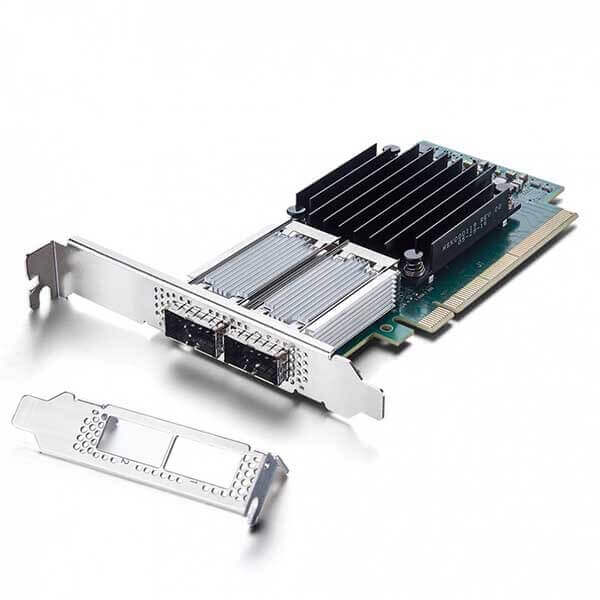

Mellanox/NVIDIA MCX416A-CCAT ConnectX-4 EN Dual Port 100G QSFP28 PCI-E3x16 Card

Specifications:

• Brand Name:- Mellanox/NVIDIA
• Part Number:- MCX416A-CCAT
• Product Category:- Adapter Cards
• Interface (Bus) Type:- PCI Express 3.0 X16
• PCI Specification Revision:- Pcie 3.0
• Ports:- 100 Gigabit Ethernet Qsfp X 2
• Connectivity Technology:- Wired
• Data Link Protocol:- 100 Gigabit Ethernet
• Data Transfer Rate:- 100 Gbps
• Network / Transport Protocol:- TCP/ip, udp/ip
• Operational:-  0°C to 55°C
• Non-operational:-  -40°C to 70°C
• Product dimension:- 2.71 in. x 5.6 in./ 68.90mm x 142.24
• Weight: 0.40 kg/ 0.88 Lbs
• Shipping Dimensions(LxWxH):- 8 x 4 x 2 Inches/20.3 x 10.2 x 5.08 Cm
• If you need a Mellanox MCX653106A-ECAT, We Have

We kept stock in New, Used, and Refurbished condition.

MCX416A- CCAT

The Mellanox MCX416A- CCAT ConnectX-4 is a performance attachment card with Metal that has dual ports at a capability of 100Gb/s. This card is integrated with QSFP28 interfaces; something which makes it ideal for data bandwidth in server and storage networks. It is designed to fit PCI-E3x16 slots and as a rule, installed to connect switches. The MCX416A-CCAT ConnectX-4 EN Network Interface Card is used to connect with Mellanox switches such as the Mellanox Spectrum series, SN3000 series, SN2700, SN2100, SN3700, SN3410, and SX series switches. Because of the ability to transfer large amounts of data in a short period of time it was perceived to be and played an essential role in improving cloud computing, and business networks.

This card has RDMA (Remote Direct Memory Access) which also assist in the provision of data and cuts the overall cpu utilization hence good for large flows of data.The (CCAT) Cloud Connect Adapter Technology is technologically employed for Cloud applications, which cannot consume over 15.6W above, it is one that outputs good power and, at the same time, takes a shorter time to consume it.

FAQs

What does QSFP28 mean?

QSFP28 is the next generation of the transceiver interface technology which is fundamental to high-speed data link interface.

What is the best throughput that can be achieved with Mellanox MCX416A-CCAT?

This card provides data rates of up to one hundred Gigabits per second.

Whether the MCX416A-CCAT can occupy the PCI-E3 x16 slots?

In fact it has been built to support the Pci-e3×16 slots.
