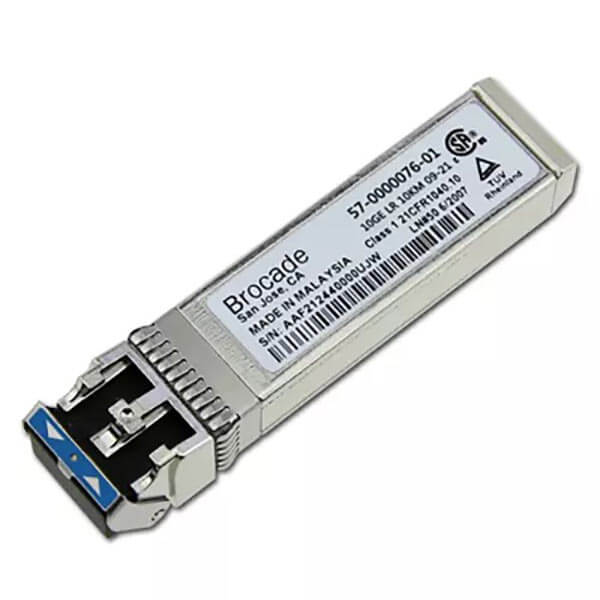

Brocade 57-0000076-01 10G 10km 1310nm SFP+ 10G-SFPP-LR 10GBE Transceiver

Specifications:

• Brand Name:- Brocade
• Part Number:- 57-0000076-01
• Product Category:- Transceivers
• Transceiver Type:- SFP+
• Data Rate:-  10Gb/s

Parameters:

• Wavelength:- 1310 nm
• Fiber Type:- SMF
• Max Distance:- 10 km
• Storage:- -40°C to 85°C
• Environment:- Operating: 0°C to 70°C

Brief Details:

• Optical Components:- DFB/PIN
• Transmitter Power:- -6 ~ 0 dBm
• Extinction ratio:- > 3.5 dB
• Receiver Sensitivity:- < -14.4 dBm
• Receiver Overload:- > 0.5 dBm
• Connector:- LC Duplex
• Digital Diagnostic Monitoring:- Yes

Dimensions:

• Production Dimensions (LxWxH):-  7.24 x 1.84 x 1.35 Cm/ 72.4 x 18.4 x 13.5 mm
• Weight: 0.1 kg/ 0.22 Lbs
• Product Shipping Dimensions(LxWxH): 4″x4″x2″

We kept stock in New, Used, and Refurbished condition.

The Brocade 57-0000076-01 10G SFP+ transceiver is perfect transmitting hardware that is able to deliver a high level of performance in the systems interconnection. It functions successfully at the wavelength of 1310 nm for transmitting data through Single-Mode Fiber (SMF). This transceiver has a maximum distance of up to 10 kilometres and is most suitable for use in data centres and enterprise networks. It is capable of supporting data rates up to ten Gigabits per second, thereby enhancing the efficiency of the data transfer rates.

The Brocade 57-0000076-01 transceiver is designed to work with numerous Brocade switches, such as Brocade ICX 6400 switches as well as the ICX 6800 series and FastIron SX series switches. It also supports the Brocade MLX Series and the Brocade 7800 Series, which provide high performance and availability for data centre and enterprise networks. : They help in the provision of seamless data flow and improve network flexibility, especially for traditional as well as cloud-based architectures. The compact design of the device is equipped with the LC Duplex connector, and it has a temperature range from 0°C to 70°C, storage in an aggressive temperature environment -40°C to 85°C.

FAQs

What is the maximum distance for the Brocade 57-0000076-01 transceiver?

The maximum distance using that same tool is measured to be a maximum of 10 kilometres.

What wavelength does this transceiver operate at?

It works in the wavelength of 1310nm.

To what switches is the 57-0000076-01 transceiver interfaced with?

It integrates with the Brocade ICX series of switches and the Fast Iron series switch.
