Specifications:
- Brand Name:- Brocade
- Part Number:- 57-1000027-01
- Product Category:- Transceivers
- Transceiver Type:- SFP+
Brief Details:
- Device Type: 8G FC SFP+
- Data Rate:- 8.5Gbps
- Wavelength:- 1310nm
- Distance:- 10km
- Connector:- Duplex LC
- Cable Type:- SMF
- DDMI:- Yes
- Operating Temperature Range:- 0 to 70°C (32 to 158°F)
Dimensions:
- Product Dimensions(LxWxH):- 7.11 x1.35×0.85 Cm/ 71.1 x 13.5 x 8.55 mm
- Weight: 0.11 kg/ 0.24 Lbs
- Product Shipping Dimensions(LxWxH): 4″x4″x2″
We kept stock in New, Used, and Refurbished condition.

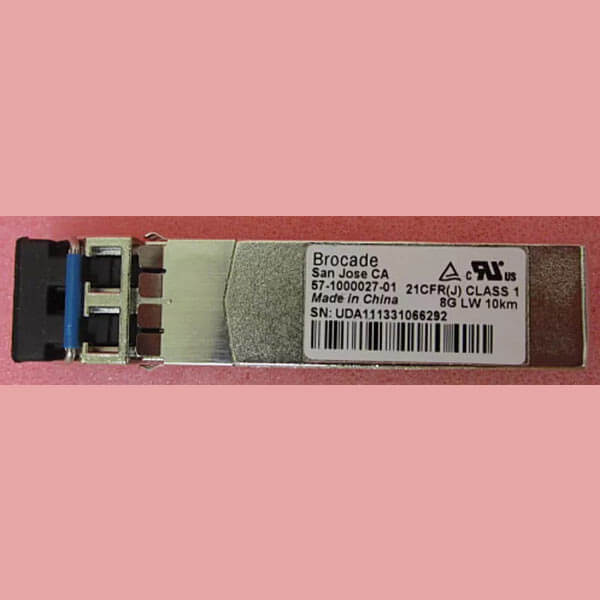

The Brocade 57-1000027-01 XBR-000153 8GB SFP+ LW 10km Transceiver is an advanced element constructed for the transmission of data in storage area networks. This product has a data rate of 8.5Gbps on the wavelength of 1310nm and a distance support of up to 10 Km. The Brocade 57-1000027-01 XBR-000153 8GB SFP+ LW 10km Transceiver can be connected to the Brocade switches such as the Icx 7450, Icx 7250, Icx 6610 and Icx 6450 series switches, and the Vdx 6730 and VDX 6740 switches. They also facilitate data transmission and provide high bandwidth solutions that perfect well-functionality in data centers and other large businesses. The duplex LC connector provides high connectivity for single mode fiber cable (SMF), making it suitable for long-haul applications.
This Transceiver comes integrated with an important feature known as the Digital Diagnostic Monitoring Interface (DDMI); this feature enables any parameters such as temperature and power levels to be monitored in real-time, hence guaranteeing maximum performance. It functions between 0 and 70 degrees Celsius; that is, it is adaptable to any physical climate condition.
FAQs
What is the range of the Brocade 57-1000027-01 transceiver?
The maximum distance for this configuration means a single-mode fibre system is 10 kilometres.
What is the data rate for this Transceiver?
It has a capacity of supporting data rate of 8.5Gbps.
Which switches are available for the Brocade 57-1000027-01?
This one supports the Brocade ICX and VDX family of switches.
