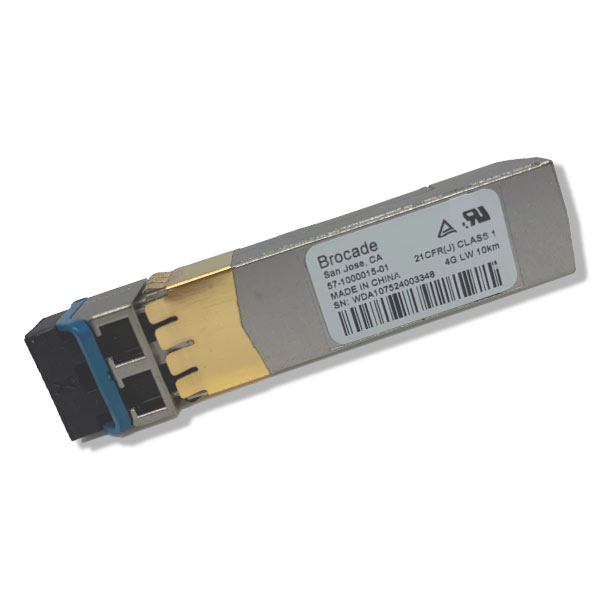

Brocade 57-1000015-01 4Gb Long Wavelength (10 km) Optical Transceiver up to 10 km connectivity XBR-000144

Specifications:

• Brand Name:- Brocade
• Part Number:- 57-1000015-01
• Product Category:- Transceivers
• Transceiver Type:- SFP
• Device Type: 4G FC SFP
• Data Rate: 4.25Gbps
• Wavelength: 1310nm
• Distance: 10km
• Connector: Duplex LC
• Cable Type: SMF
• DDMI: Yes
• Operating Temperature Range: 0 to 70°C (32 to 158°F)

Dimensions:

• Product Dimensions(LxWxH):-5.75 x 1.20 x 1.4 cm/57.5 x 12.05 x14 mm
• Weight:- 0.2 Kg/ 0.44 Lbs
• Product Shipping Dimensions(LxWxH): 4″x4″x2″

We kept stock in New, Used, and Refurbished condition.

Brocade 57-1000015-01 is a 4Gb Fibre Channel SFP Single Mode Fiber Optic Transceiver Module designed for high-speed data communication up to 10km via SMF. It comes in wavelengths at 1310, and it offers consistently good data rates up to 4.25Gb/s. This transceiver has been customized to work with Brocade’s Fibre Channel switches to improve communication between devices in the data center and enterprise storage networks.

Brocade switches it supports include the Brocade 300, 5100, 6505 and 6510 switches family, and the Brocade DCX backbone. This compatibility results in efficient, high-rate data transfer, making it the most preferred solution for organizations that require low latency and stable long-distance connections. The 57-1000015-01 uses a Duplex LC connector, which gives an exact result in transmitting smooth signals in high performance. The problem-solving ability of its Digital Diagnostics Monitoring Interface (DDMI) compliance to environmental standards makes it more sustainable.

FAQs

What is the data transfer rate of the maximum of the Brocade 57-1000015-01?

It is possible to attain data rates up to 4.25 Gbps.

What type of connector does this transceiver have?

It employs a Duplex LC connector for a strong and reliable high-speed connection.

Is this transceiver compatible with Brocade DCX series switches?

Yes, it is compatible with the Brocade DCX Backbone series and other Brocade switches, if I am not wrong.
