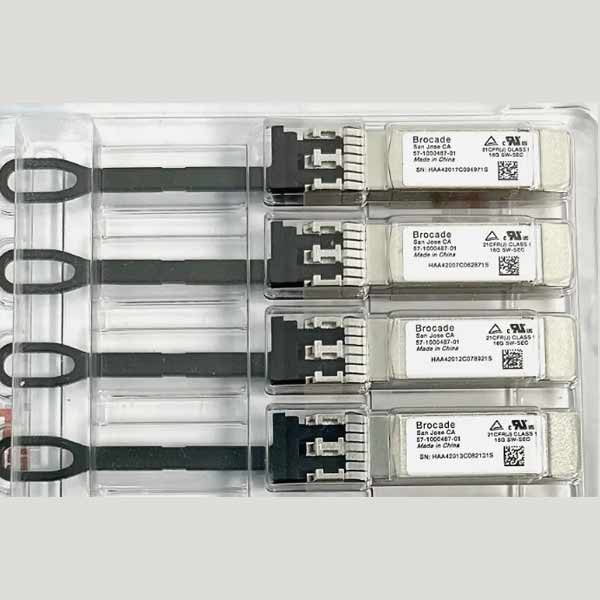

Brocade 57-1000487-0116G FC SFP+ SWL Gen 7 XBR-000492 16GBASE-SW LC Duplex MMF Transceiver Module

Specifications:

• Brand Name:- Brocade
• Part Number:- 57-1000487-01
• Product Category:- Transceivers
• Transceiver Type:- SFP+

Parameters:

• Speed: 16G
• Reach: 100Meter
• Medium: Multi-mode
• Wavelength-TX: 850nm
• Connector: LC Duplex
• Main-Application: 16GBASE-SW
• Wavelength-RX: 850nm
• MSA-Standard: SFP+ Transceiver
• Temperature Range: 0°C to +70°C

Dimensions:

• Product Dimensions(LxWxH):- 7.11 x1.35×0.85 Cm/ 71.1 x 13.5 x 8.55 mm
• Weight: 0.11 kg/ 0.24 Lbs
• Product Shipping Dimensions(LxWxH): 4″x4″x2″

We kept stock in New, Used, and Refurbished condition.

The Brocade 57-1000487-01 16G FC SFP+ SWL Gen 7 XBR-000492 is a high performance 16GBASE-SW transceiver module for use in data centers. Working on Multi Mode Fiber (MMF), it gives straight through connectivity up to 100 meters with a transmission wavelength of 850 nm and reception wavelength of 850nm. This SFP+ transceiver is perfect for connection in storage networks; as such, it is perfect for applications that require low latencies and high reliability.

The 57-1000487-01 works with Brocade switches, such as the Brocade G610, G620, and G630 switches, as well as the Brocade 6520 switches. It guarantees reliable and efficient data transmission and outstanding performance in Storage Area Networks (SAN) used in virtualization, data storage, cloud services, etc. The transceiver features the LC Duplex connector, which provides a stable and durable connection at the physical layer and is immune to signal degradation after prolonged use. This Gen 7 transceiver is MSA compliant, has an extended operating temperature of 0 to 70 degrees Celsius and is fully compatible with Brocade series network equipment.

FAQs

What is the maximum distance that the Brocade 57-1000487-01 can cover?

It works in distances of up to 100 meters in Multi-Mode Fiber.

What Brocade switches can be used with this transceiver?

This transceiver is compatible with Brocade switches such as G610, G620, G630, and 6520 series.

Is the part number 57-1000487-01 RoHS-compliant?

Yes, it is and up to the RoHS standards.
